Product introduction

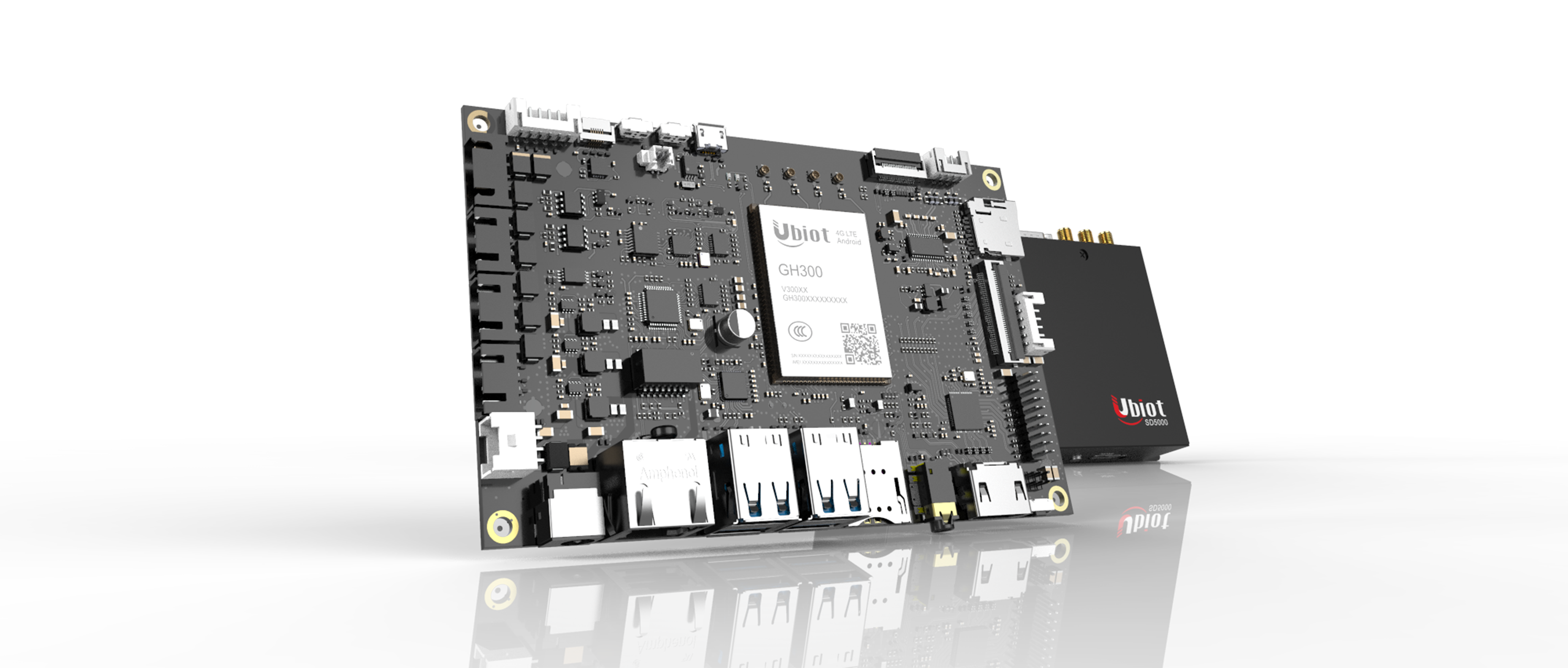

SD5000 V1.0 board integrates audio, video, Ethernet, WIFI, 2G, 3G, LTE, Bluetooth, FM, GNSS, supports most of the current popular video and picture format decoding, supports HDMI LVDS video output, with Our video screen adapter board can drive various TFT LCD displays, which greatly simplifies the system design of the whole machine. The board integrates 2G, 3G, and LTE functional circuits to achieve high-speed wireless data transmission, which is very suitable for high-definition network playback boxes, video advertising machines and picture frame advertising machines.


Highly integrated: The board integrates 2G, 3G, LTE, WIFI wireless communication and Ethernet wired communication, supports USB peripherals, supports RS232, RS485, RS422 protocol standards and interface devices, can be inserted into SD card, supports high-definition large-screen video plug-in play. The entire board adopts a single-sided layout, which simplifies the overall design and user operation.

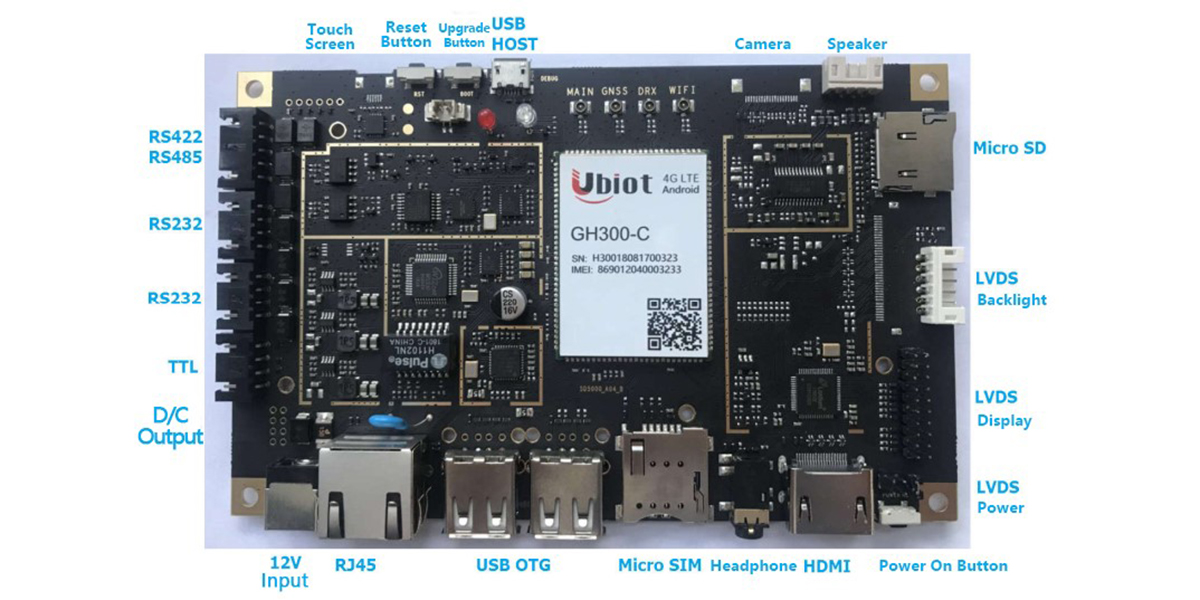

Rich interfaces: The board integrates USB, RS232/485/422, RJ45, earphone, HDMI, LVDS and other interfaces, which greatly simplifies the user's operation and use.

Full-featured: Supports various LVDS interfaces, supports horizontal and vertical screen playback, video split screen, scrolling subtitles, USB data import and export, etc.

Convenient management: The Android Main Board runs the Android operating system, which is convenient for users to control files and software, and the human-computer interaction is very simple.

Dimension drawing


Product parameters

Main Hardware   Indicators


QUALCOMM MSM8909, Quad-core, Dominant Frequency   1.09GHz



Built-in Memory

EMMC 64Gbits

operating System

Android 5.X and above

Play Mode

Supports multiple playback modes such as loop,   timing, and inter cut


2G, 3G, LET, Ethernet, support WIFI / Bluetooth   4.0


GPS, BeiDou, Galileo


Built-in WIFI, BT4.0


1 10M/100M adaptive Ethernet

Video Playback

Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4,   etc.

Image Format


USB2.0 Interface

1 USB HOST Micro USB port, 4 USB OTG USB-A ports

Serial Port

1 TTL, 2 RS232, 1 RS422 (compatible with RS485)

SD Card

Support Micro SD card

LVDS Output

1 single/dual channel, can directly drive 50/60Hz   LCD screen

HDMI Output

1, support 720P@600Hz

Audio and video Output

Support left and right channel output, built-in   8R/5W power amplifier

RTC Real time Clock


Timing Power on/Off


System Upgrade

Support local USB upgrade
