Scope of application
SD5580 is an Android smart motherboard with rich control interfaces and external extension interfaces. It has a wide range of application scenarios in smart display terminals, video terminals and industrial automation terminals, such as high-end commercial displays, intelligent self-service terminals, intelligent retail terminals, and edge computing. , industrial control host, robot equipment, etc.
SD5580 adopts Qualcomm Snapdragon 865 processor, which has excellent processing power and AI computing power. It can provide users with high-quality AI audio and video processing services in real time. The ultra-high-speed wired and wireless communication of the board greatly improves The data throughput of the system is improved, and the rich high-definition display interface of the board brings customers an extraordinary visual experience.
With its powerful core computing processing capability, SD5580 is very suitable for AI edge computing scenarios
Powerful processing power: Qualcomm 8-core Kryo™ 585 processor QCS8250, clocked at 2.8GHz, brings powerful computing and processing power.
Efficient AI computing performance: AI computing power of up to 15TOPS, supporting 24-channel FHD video processing power.
Abundant peripheral interfaces: support USB3.1 ultra-high-speed communication, HDMI 4K ultra-high-definition display, RS232&RS485 industrial-grade communication, RJ45 Gigabit Ethernet communication, etc.
Excellent wireless communication: 5G wireless module can be connected externally, supporting WiFi-6 wireless link.
Simple management and use: Equipped with Android 10 operating system, enjoy open Android development resources and rich Android application software..
Three Kryo Gold Cores 2.419GHz
One Kryo Gold Prime Core 2.842GHz
Quad Low-Power Kryo Silver cores 1.805GHz
128GB UFS+8GB LPDDR5 (Default)
256GB UFS+8GB LPDDR5 (Maximum)
64GB UFS+4GB LPDDR4X (Option)

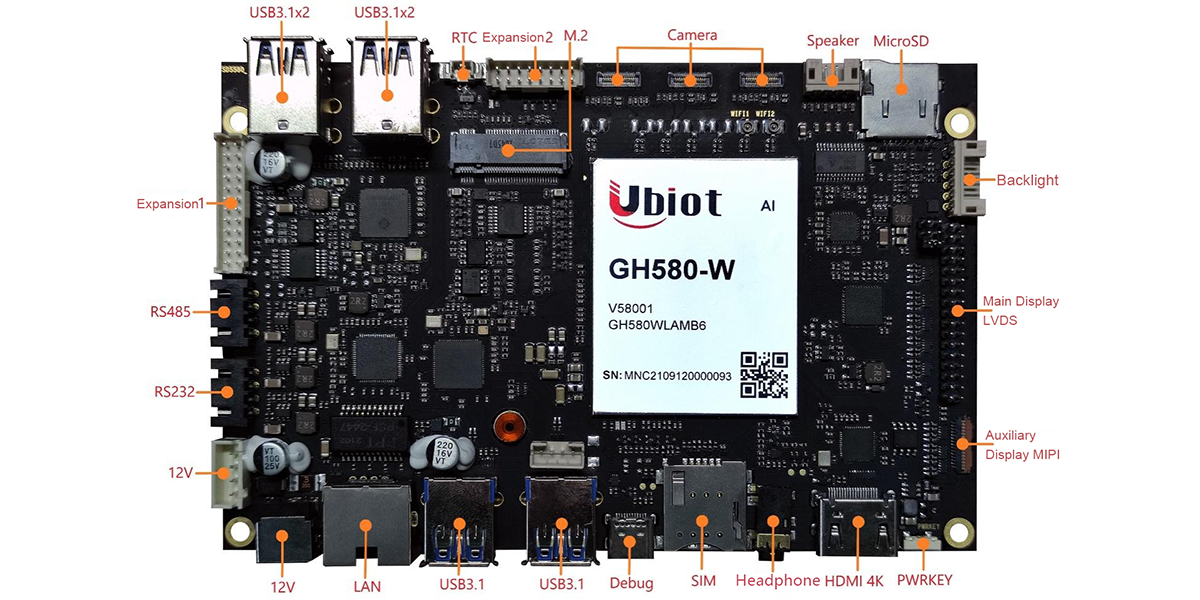

1 x M.2-B Key Connector
2.4G 5G WIFI 802.11a/b/g/n/ac/ax 2x2 MIMO
1 10M/100M/1000M Ethernet
6 x USB3.1 HOST A interfaces(one of them can be selected as a USB2.0 pin interface)
1 x Type-C(for debug and upgrade)
3 x RS232(one can be configured as RS232 interface by hardware) interfaces
1 x RS485(can be configured as RS232 interface by hardware) Interface
1 x HDMI Interface
Up to 3840x2160 Resolution
Dual Channel LVDS
Default 1080p Resolution
1 x MIPI DSI Interface
Default 1080p Resolution
1 x 3.5mm Jack
2 x 8R/5W Speaker Driver Interfaces
1.8V/3/3V, Push-Push Micro-SIM Card holder
Push-Push Micro-SD card holder
Video Encode / Decode
12V DC Connector
3 MIPI Camera Interfaces
2 WIFI/BT Antenna IPEX Connector
1 Coin Battery Connector
1 1.8V I2C
1 1.8V SP
2 1.8V ADC
Power On / Off
