Scope of application

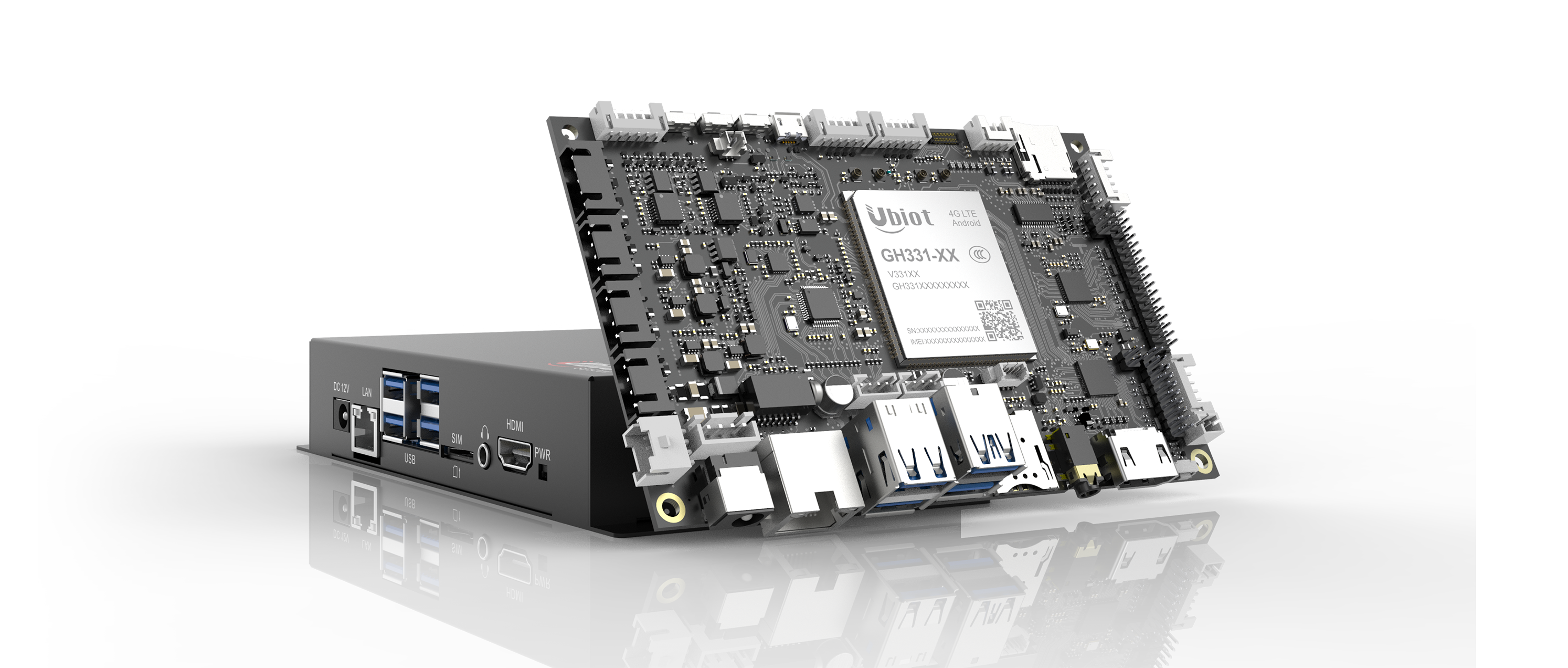

SD5300 Professional Android Board adopts self-developed hardware solution,is equipped with android operating system,and has rich android market applications. Internally integrates 3G/4G communication function, supports 3G/4G full Netcom real-time communication, supports USB3.0 super high-speed communication, 100M Ethernet wired communication, LVDS HDMI dual-screen different display and dual-screen simultaneous display function, can be connected to RS232/RS485/RS422 and other standard protocol peripherals. It greatly simplifies the system design of the whole machine, brings users a simple and smooth operation experience and can meet the individual needs of customers
SD5300 industrial-grade hardware design, equipped with Android system, has rich interfaces and excellent 3G/4G wireless transmission performance. It can be easily integrated into the vending machine system, and can be extended to access a variety of peripherals.
Powerful processing power: Qualcomm 8-core Cortex-A53 architecture processor SDM450, clocked at 1.8GHz (MSM8953 supports up to 2.2GHz), bringing powerful computing and processing power.
Flexible display configuration: The board has 2 channels of LVDS and 1 channel of HDMI display interface, supports 1080p/LVDS+720p/LVDS, 1080p/LVDS+1080p/HDMI and other resolutions of dual-screen different display or dual-screen simultaneous display function.
Abundant peripheral interfaces: The board has interfaces such as USB, RS232/485/422, RJ45, earphone, HDMI, LVDS, etc., to the greatest extent to support the types of external devices of equipment manufacturers. The board has a USB3.0 super-high-speed communication interface, which meets various current face payment scenarios.
Highly functional integration: the board integrates 2G/3G/4G/LTE/WIFI wireless communication and Ethernet wired communication; supports USB master-slave communication; supports RS232/RS485/RS422 protocol standards and interface devices; SD card can be inserted to expand storage capacity; Support 1080p and 720p dual-screen simultaneous display and dual-screen different display functions.
Simple management and use: The board runs the Android operating system, enjoys open Android development resources and rich Android application software, which is convenient for users to control files and software, and the human-computer interaction is very simple.
SDM450 octa-core Cortex-A53 1.8GHz
On-board LPDDR3 2GB
GPS / BeiDou / GLONASS / Galileo
WIFI / BT
2.4G 802.11 b/g/n/ac
Bluetooth 4.2 LE and earlier

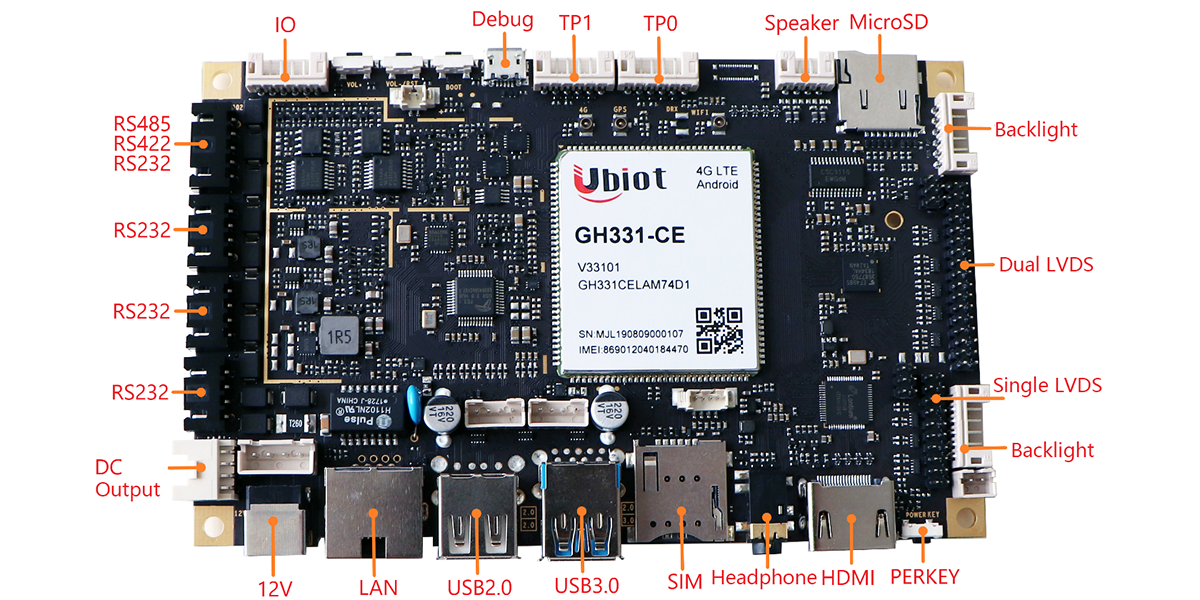

1 100M Ethernet
1 USB3.0 HOST A interface
3 USB2.0 HOST A interfaces
2 USB2.0 HOST pin connector interfaces
1 USB2.0 Client interface
1 RS422/RS485 interface
3 RS232 interfaces
(maximum support 4 RS232 interfaces, at this time, RS485/ RS422 need to be configured as RS232 interface by hardware)
1 HDMI interface, default 1080p resolution
Single Channel LVDS, default 720p resolution
Dual Channel LVDS, default 1080p resolution
1 3.5mm headphone connector
2 8R/5W speaker driver interfaces
1 analog MIC input interface
1.8V/3/3V，Push-Push Micro-SIM Card holder
Push-Push Micro-SD card holder
2 I2C pin connector interfaces
4 3.3V GPIOs (Internal 5.1K pull-up resistor)
12V DC connector
1 MIPI Camera interface (Default not install)
Power on/off (Default power-on auto start)
1 Main antenna IPEX connector
1 WIFI/BT antenna IPEX connector
1 GNSS antenna IPEX connector
1 Red LED indicator for power
1 Blue LED indicator for network
1 coin battery connector
